防靜電四氟硅膠管FV30S

您的當前位置：首頁 > 產品展示 > > 新能源軟管 > 防靜電四氟硅膠管FV30S

防靜電四氟硅膠管FV30S

所屬分類：新能源軟管
點擊次數：0
發布日期：2021-12-15 00:00:00
在線詢價

詳細介紹


使用范圍：

內層為黑色導電FKM層，因此不僅可以輸送與硅酸不相容的腐蝕性液體，例如酸或油。同時擁有極好的抗靜電效果，可以廣泛用于對靜電要求比較高的場合，有效防止因?yàn)殪o電產生的火災。同時該軟管能夠耐高溫，能夠通過脈沖或吸力，可以抵抗壓力或真空。

軟管結構：

內管：黑色導電FKM 氟橡膠（VITON橡膠）

增強層：螺旋鋼絲+四層層紡織層

溫度范圍：-40°C～+200°C

適用標準或認證：FDA 21 CFR 177.2600

Product application:

The inner layer is a black conductive FKM layer, so it can not only transport corrosive liquids incompatible with silicic acid, such as acid or oil. At the same time, it has excellent anti-static effect, which can be widely used in occasions with high requirements for static electricity to effectively prevent fire caused by static electricity. At the same time, the hose can withstand high temperature, can pass pulse or suction, and can resist pressure or vacuum.

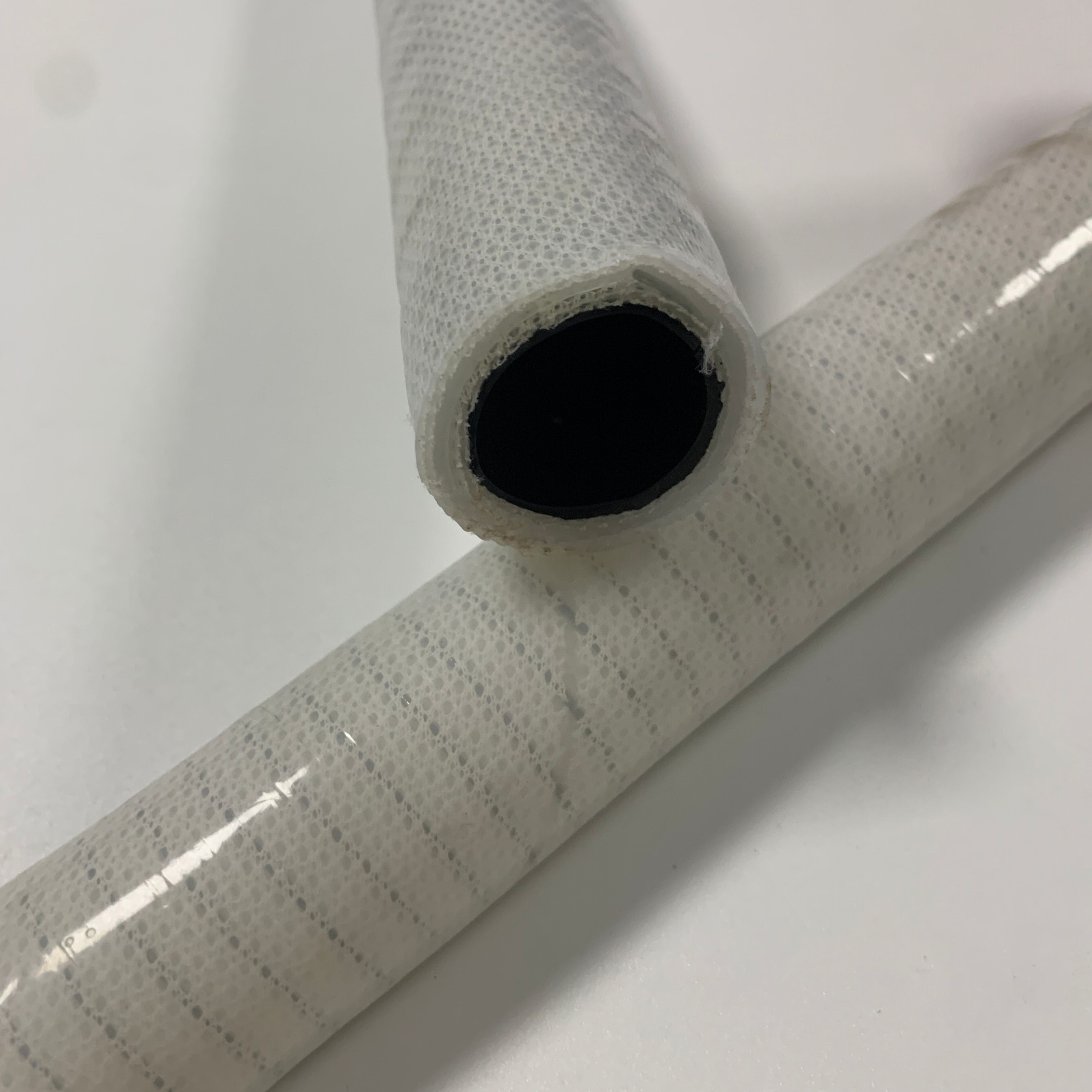

Product structure:

inner layer :Black conductive FKM fluororubber (Viton rubber)

Weaving: 4 layers of cloth woven mesh

Steel wire: using single layer of 304 stainless steel wire, the spacing is 5mm

Temperater:-40-200℃

Centification:FDA 21 CFR 177.2600
