東莞市格雷特硅膠制品有限公司

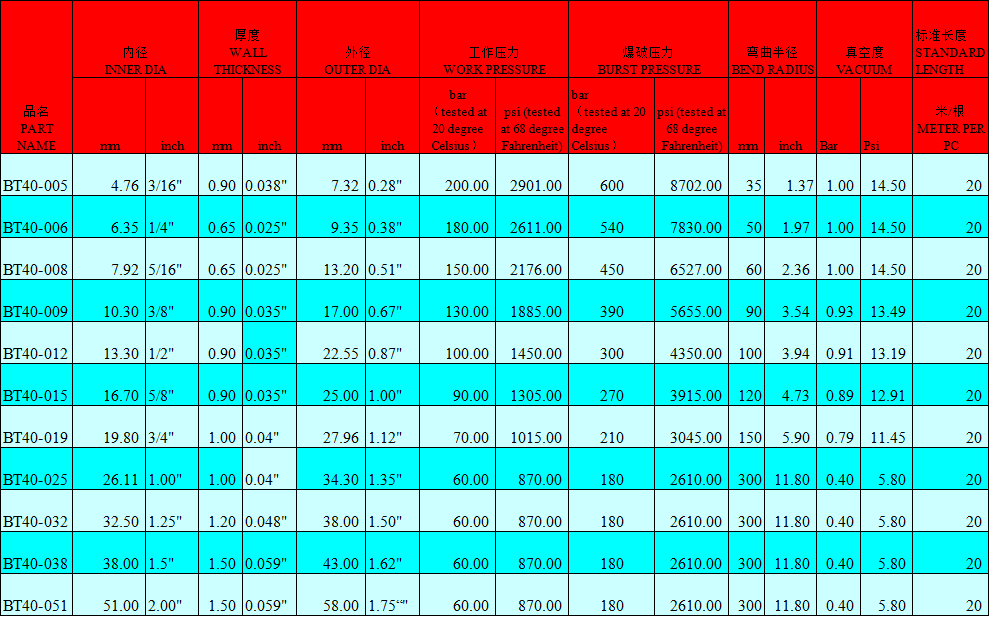

包覆光滑鐵氟龍（PTFE）軟管BT40系列技術參數

smooth PTFE hose

產品描述：

表層采用鉑金硅膠包覆，中間采用加強SS304不銹鋼絲編織PTFE組合而成。廣泛的應用于通過食品，醫藥及化妝用品，生物工程的液體和半流體。

標準長度為20米每卷，同時我們也可以根據客戶的要求生產規定的尺寸和長度，膠管產品通過美國FDA級和USP Class VI和德國BFR認證。

——工作溫度范圍‘-60oC / +220oC 在短時間內可達到 260oC

——具有很好耐強酸和強堿性能，有極好的化學穩定性?？梢阅透邏?，內壁有具有很好耐磨性。

——具有很好彎曲性，內壁光滑清潔，易清洗不粘水，用清洗物清洗后不附著任何殘留物，可采用高溫高壓蒸汽消毒和滅菌。

——無嗅、無味,完全無毒，不含任何塑化劑和添加劑成分。完全符合食品FDA和生物醫用級USP VI的要求。

——這些管通常是外層為乳白色鉑金硫化硅膠。我們也可根據客戶所需顏色來訂制外層。

品質認證：

——鉑金硅膠軟管通過美國FDA 21 CFR 177.2600(食品和藥物管理局)食品級認證。

——鉑金硅膠軟管符合通過美國醫用USP Class VI級標準認證。

Product description:

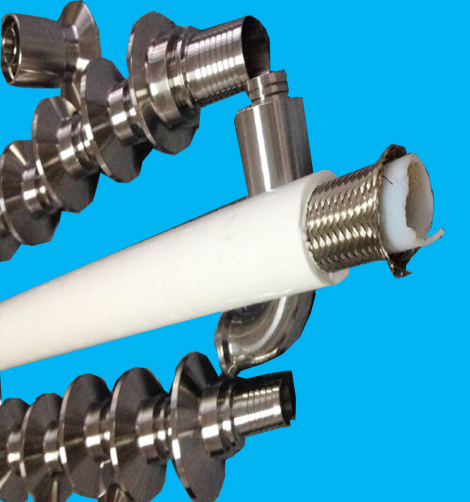

The surface layer is covered with platinum silicone and the middle layer is made of reinforced SS304 stainless steel wire woven braiding and PTFE.

Widely used to deliverying the liquid and semi fluid of food, medicine and cosmetic products, biological engineering.

-covered by platinum silione.

-Silicone hose is made by the reinforced 304 stainless steel wire braided PTFE and platinum silicone. Widely used in liquid and semi fluid food, medicine and cosmetic products, bio engineering.

-Standard length is 20 meters per roll, and we also can produce the specified size and length according to customer requirements. Our hose products has passed the certification

of the United States FDA grade and Class VI USP and German BFR.

Product characteristics:

-The working temperature range of -60 to +220 degrees Celsius and can reach 260 degrees Celsius in a short period of time

-Strong resistance of acid and alkali, excellent chemical stability, good resistance of high pressure and the inner wall has a very good abrasion performance.

-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking,

After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.

-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade VI USP.

-The outer layer material is usually the milky white platinum vulcanized silicone. And the color of outer layer can be customized according to the customer's need.

Quality certification:

-Platinum silicone hoses pass the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.

-Platinum silicone hose is in accordance with the United States Class VI USP grade standard certification.
