東莞市格雷特硅膠制品有限公司

食品級加強編織硅膠軟管BD40

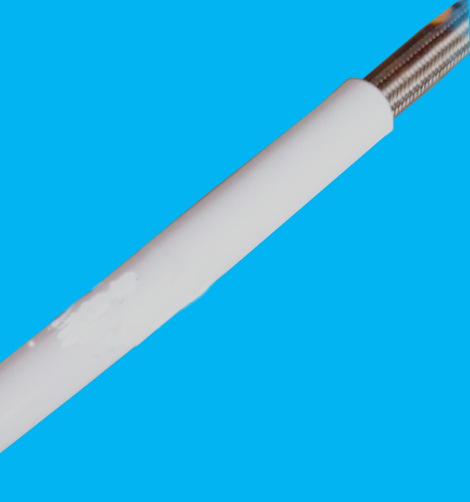

Food grade reinforced braided silicone hose BD40

產品應用：適合各類流體食品的排吸，如牛奶，植物油，可樂類，果汁類，油脂類，同時可用于食品加工和罐裝車間設備。

可作為罐 車運輸溫度高達150oC產品時的通所管路。耐壓性好。

產品描述：

硅膠軟管采用硅膠加強聚脂線和鉑金硅膠結構，產品壓力相當于3倍的同類BP20系列的壓力。廣泛的應用于通過食品，醫藥及化妝用品，生物工程的液體和半流體。

標準長度為20米每卷，同時我們也可以根據客戶的要求生產規定的尺寸和長度，膠管產品通過美國FDA級和USP Class VI和德國BFR認證。

產品特性：

BD40系列硅膠軟管

——工作溫度范圍‘-60oC / +180oC (-76oF / +356oF)在短時間內可達到  220oC (392oF)

——具有很好彎曲性，內壁光滑清潔，易清洗不粘水，用清洗物清洗后不附著任何殘留物，可采用高溫高壓蒸汽消毒和滅菌。

——無嗅、無味,完全無毒，不含任何塑化劑和添加劑成分。完全符合食品FDA和生物醫用級USP的要求。

——這些管通常是半透明的，外層為乳白色。我們也可根據客戶所需顏色來訂制。

品質認證：

——鉑金硅膠軟管通過美國FDA 21 CFR 177.2600(食品和藥物管理局)食品級認證。

——鉑金硅膠軟管通過德國BfR零件 XV標準認證和LFBG認證。

——鉑金硅膠軟管符合通過美國醫用USP Class VI級標準認證。

——鉑金硅膠管依照歐盟指令2008/95 / ECC的限制使用某些有害物質(RoHS)認可。

Product application:

the hose is suitable for sucking or deliverying all kinds of fluid food, such as milk, vegetable oil, cola,

fruit juice, grease, etc,and used for food processing equipment and canning equipment.It can be used as the pipeline

when the transportation temperature of the tank truck is going up to 150 degrees Celsius with good pressure resistance.

Product description:

-Silicone hoses adopt silicone reinforced kevlar line and platinum silicone structure. The product pressure will be 3 times more than the one of BP20 series. Widely used in liquid and semi fluid of food industry, medicine and cosmetic industry and bio engineering.

-Standard length is 20 meters per roll, at the same time, we can customize the hose length according to customers' needs. Our hose products has passed the United States FDA grade and Class VI USP and German BFR certification.

Product characteristics:

-The working temperature range of -60 to +180 degree Celsius (-76oF / +356oF) and can reach +280 degrees Celsius (392oF) in a short period of time.

-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking,

After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.

-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade VI USP.

-these hoses are usually translucent and the layer outside is milky white color. The color of hose can be can customized according to customer's needs.

Quality certification:

-Platinum silicone hose passes the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.

-Platinum silicone hose passes the German FDA/BfR parts XV standard certification and LFBG and BGVV standard certification.

-Platinum silicone hose in accordance with the United States Class VI USP grade standard certification.

-Platinum silicone tube has passed the certificate of limitation usage of hazardous substances (RoHS) in accordance with the EU directive 2008/95/ECC
