產品特性：

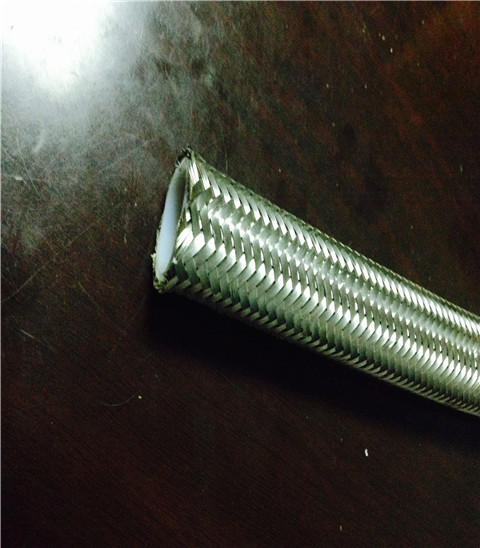

編織管鐵氟龍（PTFE）BT20:
——工作溫度范圍‘-60oC / +220oC在短時間內可達到 260oC
——具有耐強酸和強堿性能，有很好的化學穩定性?？梢阅透邏海瑑?nèi)壁有具有很好耐磨性。
——具有彎曲性，內壁光滑清潔，易清洗不粘水，用清洗物清洗后不附著任何殘留物，可采用高溫高壓蒸汽消毒和滅菌。
——具有的柔韌性，耐磨光滑。環保性能好。
品質認證：
——編織管鐵氟龍通過美國FDA 21 CFR 177.2600,食品級認證。符合ROHS環保標準
Product characteristics:
-The working temperature range of -60 to +220 degree Celsius and in a short period of time can reach 260 degrees Celsius.
-strong acid and alkali resistance is good, excellent chemical stability.Resistant to high pressure.The inner wall has a good wear resistance.
-With an excellent bend, the inner wall is smooth and clean, easy to be washed, no water sticking,
After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.
-good flexibility, wear resistance and smooth. Environmental protection performance is good
Quality certification:
- Braided PTFE Smooth Hose pass the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.
- Braided PTFE Smooth Hose ROHS grade standard certification.
| 編織管鐵氟龍（PTFE）BT20 Braided PTFE Smooth Hose BT20 | |||||||||||||||
| 品名 PART NAME | 內徑 INNER DIA | 壁厚 WALL THICKNESS | 外徑 OUTER DIA | 工作壓力 WORK PRESSURE | 最大爆破壓力 BURST PRESSURE | 拆彎半徑 BEND RADIUS | 真空度 VACUUM | 標準長度 STANDARD LENGTH | |||||||
| (mm) | (inch) | +1.0/ -0.5mm | +0.04/0.02" | (mm) | (inch) | Bar（20oC） | psi（68oF） | Bar（20oC） | psi（68oF） | mm | inch | Bar | Psi | 米/根 M/ PC | |
| BT20-005 | 4.76 | 3/16" | 0.75 | 0.30 | 8.00 | 0.32" | 200.00 | 2901.00 | 600 | 8702.00 | 35 | 1.37 | 1.00 | 14.50 | 20 |
| BT20-006 | 6.35 | 1/4" | 0.75 | 0.3 | 9.30 | 0.35" | 180.00 | 2611.00 | 540 | 7830.00 | 50 | 1.97 | 1.00 | 14.50 | 20 |
| BT20-008 | 7.92 | 5/16" | 0.60 | 0.23 | 12.30 | 0.48" | 150.00 | 2176.00 | 450 | 6527.00 | 60 | 2.36 | 1.00 | 14.50 | 20 |
| BT20-009 | 9.52 | 3/8" | 0.65 | 0.35 | 12.80 | 0.51" | 130.00 | 1885.00 | 390 | 5655.00 | 90 | 3.54 | 0.93 | 13.49 | 20 |
| BT20-012 | 12.70 | 1/2" | 0.80 | 0.38 | 17.80 | 0.91" | 100.00 | 1450.00 | 300 | 4350.00 | 100 | 3.94 | 0.91 | 13.19 | 20 |
| BT20-015 | 15.80 | 5/8" | 0.80 | 0.38 | 21.80 | 0.87" | 90.00 | 1305.00 | 270 | 3915.00 | 120 | 4.73 | 0.89 | 12.91 | 20 |
| BT20-019 | 19.05 | 3/4" | 1.00 | 0.40 | 27.00 | 1..08" | 70.00 | 1015.00 | 210 | 3045.00 | 150 | 5.90 | 0.79 | 11.45 | 20 |
| BT20-025 | 25.40 | 1.00" | 1.00 | 0.40 | 32.20 | 1.25" | 60.00 | 870.00 | 180 | 2610.00 | 300 | 11.80 | 0.40 | 5.80 | 20 |
| BT20-032 | 32.00 | 1.00" | 1.00 | 0.40 | 40.20 | 1.53" | 46.00 | 870.00 | 180 | 2610.00 | 400 | 15.80 | 0.40 | 5.80 | 20 |
| BT20-038 | 38.00 | 1.5" | 1.20 | 0.43 | 47.80 | 1.85" | 30.00 | 870.00 | 180 | 2610.00 | 450 | 17.80 | 0.40 | 5.80 | 20 |
| BT20-051 | 51.00 | 2.00" | 1.50 | 0.58 | 60.50 | 2.30" | 25.00 | 870.00 | 180 | 2610.00 | 450 | 17.80 | 0.40 | 5.80 | 10 |
