食品級橡膠管

所屬分類：食品級橡膠管
點擊次數：0
發布日期：2020-06-12 00:00:00
在線詢價

詳細介紹

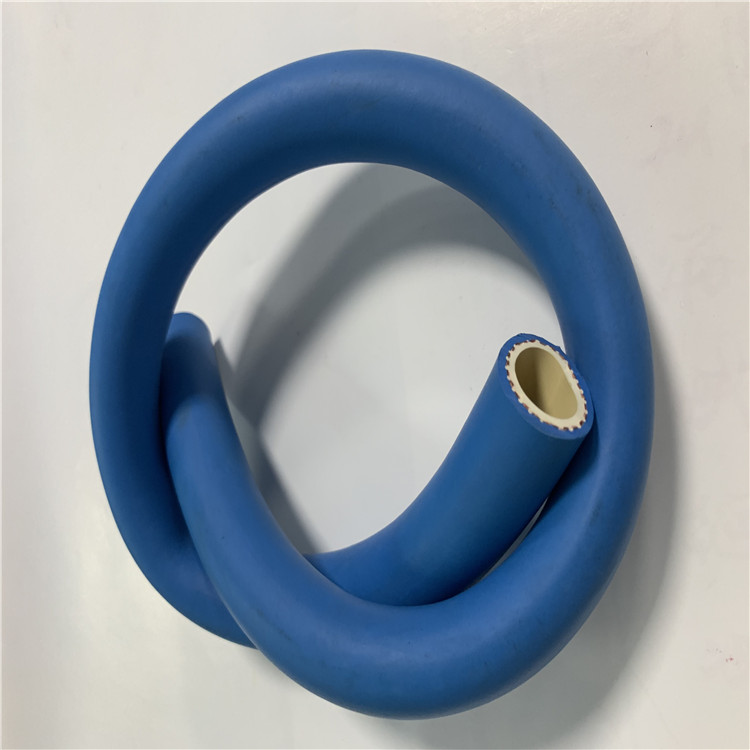

食品級橡膠管

品名 PART NANE	內徑 INNER DIA	壁厚 WALL THICKNESS	外徑 OUTER DIA	拆彎半徑 BEND RADIUS	工作壓力 WORK PRESSURE		爆破壓力 BURST PRESSURE		長度 LENGTH
	(mm)	+1.0/-0.5mm	(mm)	(mm)	Bar	psi	Bar	psi	M/PCS
RE20-10	9.5	3.5	16.5	70	20.0	290	80.0	1160	100
RN20-13	12.7	4.5	21.7	100	20.0	290	80.0	1160	100
RN20-016	15.9	4.5	24.9	130	20.0	290	80.0	1160	60
RN20-019	19	5.5	30.0	150	20.0	290	80.0	1160	60
RN20-025	25	6	37.0	200	10.0	145	40.0	580	60
RN20-032	32	6	44.0	250	10.0	145	40.0	580	40
RN20-038	38	6.5	51.0	300	10.0	145	40.0	580	40
RN20-051	50.8	7	64.8	400	10.0	145	40.0	580	40
RN20-064	63.5	8	79.5	500	10.0	145	40.0	580	40
RN20-076	76	9	94.0	600	10.0	145	40.0	580	40

應用范圍?高品質乳品及牛奶用橡膠軟管，適用于吸入和輸送牛奶、其副產品及脂肪性流體。

?廣泛應用于乳品廠、食用油廠、奶酪廠或其他食品廠。特別適用于需要很好的彎曲性能和大量需求環境下的應用。

顯著特性

?無增塑劑、無動物衍生的內管，防止細菌擴散，并確保對輸送產品不會發生接觸性污染。

?軟管表層合成材料能抵抗普通清潔劑，擁有良好的耐大氣侵蝕和耐老化性能。

軟管結構：

內管：NBR橡膠 (丁納橡膠,NAB90)，白色，食品級，無臭味，無味道，平滑，鏡面光滑。

加強層結構：高強度多層合成纖維，植入螺旋型金屬鋼線。

外層合成橡膠，藍色，抗磨損，耐大氣侵蝕，耐老化，平滑，布狀表面。

APPLICATION ?Premium milk and dairy rubber hose specifically designed to convey milk and deriva-tives and liquid fatty foodstuffs in general. For suction and delivery purposes.

?Ideal solution in dairies, edible oil mills, cheese productions and food industries in general

where the resistance to demanding applications together with flexibility in use are required.

MAIN BENEFITS

?The special structure totally free from plasticisers and animal derivatives reduces any potential risks of bacteria proliferation and cross contamination of the media conveyed. ?The composition of its rubber cover exhibits a good resistance against chemical

cleaning products and grants utmost resistance to weather and ageing.

CONSTRUCTION -

TUBE

NBR rubber (NAB90), clear, food quality, odourless and tasteless, smooth, mirror-like.

REINFORCEMENTS -

Synthetic textile plies, embedded steel wire helix.

COVER

Synthetic rubber, blue colour, resistant to abrasion, weather, ageing, smooth, cloth finish.
