東莞市格雷特硅膠制品有限公司

鉑金硫化硅膠鋼絲軟管FP31

Platinum vulcanization silicone wire hose FP31

注：1.標準生產長度為6米（特殊可訂做10米），可以做切短。其它的內徑要求可以根據客戶的要求來訂制。

2.在我們在參數表中測試是依照常溫，標準大氣壓狀態。當壓力不變時，溫度每上升幅度100度，壓力會下降百分之15。

REMARKS:

1, Standard length is 6 meters and we can customize the hose length according to customers' needs.

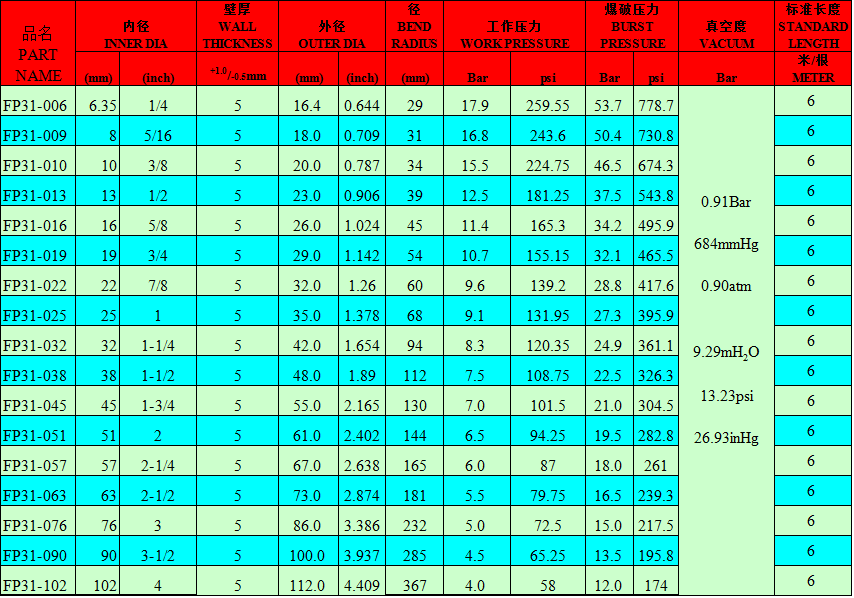

2, The test in the parameter list is in accordance with the normal temperature and the standard atmospheric pressure state.

When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.

產品應用：

特別推薦用于運輸或輸送高低溫食品、化妝品、化工和制藥行業和生物工程用的液體或半液體流體.

（如抽吸食品類乳制品；食品機械設備用連接管；酒類用連接導管；油類設備抽吸用的連接管，醫藥設備連接管路、導管等）

產品結構：

編織：四層夾布網紋編織

鋼絲：采用單層304不銹鋼絲，間距為10MM

產品特性：

——工作溫度范圍‘-60oC / +180oC (-76oF / +356oF)在短時間內可達到  220oC (392oF)

——具有很好彎曲性，內壁光滑清潔，易清洗不粘水，用清洗物清洗后不附著任何殘留物，可采用高溫高壓蒸汽消毒和滅菌。

——無嗅、無味,完全無毒，不含任何塑化劑和添加劑成分。完全符合食品FDA和生物醫用級USP的要求。

——產品經過高溫180oC*4小時高溫硫化后，不分產生任何分解物，承正負壓能力強，具體參考數據表。

配套接頭：

TC接頭（直通快速接頭316L），SMS接頭，DIN快接，CLAMP，CLOCK，J螺紋接頭，等材質為304或316L任客戶挑選。

品質認證：

——鉑金硅膠軟管通過美國FDA 21 CFR 177.2600(食品和藥物管理局)食品級認證。

——鉑金硅膠軟管通過德國FDA/BfR零件 XV標準認證和LFBG和BGVV標準認證。

——鉑金硅膠軟管符合通過美國醫用USP Class VI級標準認證。

——鉑金硅膠管依照歐盟指令2008/95 / ECC的限制使用某些有害物質(RoHS)認可。

Product application:

Widely used for transportation or delivery of low temperature food, cosmetics, chemical materials or the fluid or semi liquid fluid of pharmaceutical industry and biological engineering.

(such as the suction of food or dairy products; the connection hoses used on food machinery

liquor equipment; oil production equipment and medical equipment, etc.)

Product structure:

Weaving: 4 layers of cloth woven mesh

Steel wire: single layer of 304 stainless steel wire, the spacing is 10mm

Product characteristics:

-The working temperature range: -60 to +180 degrees Celsius (or -76 to +356 degrees Fahrenheit) and it can reach 220 degrees Celsius (or 392 degree Fahrenheit) in a short period of time

-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking,

After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.

-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade USP.

-Product will not produce any decomposition after high temperature of 180 degrees Celsius * 4 hours of high temperature Vulcanization with strong bearing capacity of negative and positive pressure.

Supporting connectors:

TC connector (straight quick connector 316L), SMS connector, DIN quick connect, CLAMP, CLOCK, J threading connectors, etc,.The material is stainless steel 304 or 316L.

Quality certification:

-Platinum silicone hose passes the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.

-Platinum silicone hose passes the German FDA/BFR parts XV standard certification and LFBG and BGVV standard certification.

-Platinum silicone hose in accordance with the United States Class VI USP grade standard certification.

-Platinum silicone hose has passed the certificate of limitation usage of hazardous substances (RoHS) in accordance with the EU directive 2008/95/ECC
