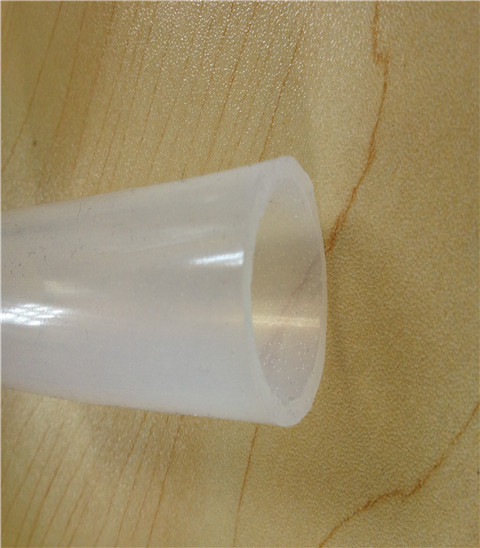

高透明耐高溫制藥級硅膠管

您的當前位置：首頁 > 產品展示 > > 制藥級硅膠軟管 > 高透明耐高溫制藥級硅膠管

高透明耐高溫制藥級硅膠管

所屬分類：制藥級硅膠軟管
點擊次數：0
發布日期：2019-01-09 00:00:00
在線詢價

詳細介紹

產品應用：

廣泛應用于化學品處理，食品飲料，醫療研究，水處理工程，制藥類，實驗室，印刷，生物技術，半導體，生命科學（組織和細胞培養，發酵）等行業。

人體注射液，血清類輸送。不含鄰苯二甲酸鹽塑化劑，不會滲入其它的傳輸液體。

產品特性：

材料：衛生級鉑金硅膠料加工而成。

表面：表面精度高，沒有任何味道，無色。具有非溶血性。

——無嗅、無味,完全無毒，不含任何塑化劑和添加劑成分。完全符合食品FDA和生物醫用級USP VI的要求。

——這些管通常是外層為透明鉑金硫化硅膠。

品質認證：

——軟管通過美國FDA 21 CFR 177.2600(食品和藥物管理局)食品級認證。

——軟管通過德國BfR零件 XV標準認證和LFBG認證。

——軟管依照歐盟指令2008/95 / ECC的限制使用某些有害物質(RoHS)認可。

品名 PART NAME	管號 HOSE NO	內徑 INNER DIA		外徑 OUTER DIA		工作壓力 WORK PRESSURE		爆破壓力 BURST PRESSURE		彎曲半徑 BEND RADIUS		真空度 VACUUM		標準長度 STANDARD LENGTH
品名 PART NAME	管號 HOSE NO	mm	inch	mm	inch	bar（tested at 20 degree Celsius）	psi (tested at 68 degree Fahrenheit)	bar（tested at 20 degree Celsius）	psi (tested at 68 degree Fahrenheit)	mm	inch	Bar	Psi	米/根 METERS PER PC
BH00-0155	#15	4.76	3/16"	7.92	0.31"	0.90	13.05	2.7	39.15	20	0.79	N/A	N/A	200
BH00-016	#16	3.18	1/8"	6.34	0.25"	1.45	21.03	4.35	63.08	30	1.18	N/A	N/A	200
BH00-017	#17	6.35	0.25"	9.60	0.36"	0.90	13.05	2.7	39.15	40	1.57	N/A	N/A	200
BH00-018	#18	7.90	0.31"	11.11	0.42"	1.00	14.50	3	43.50	60	2.36	N/A	N/A	200
BH00-024	#24	6.40	0.25"	11.40	0.42"	1.00	14.50	3	43.50	90	3.54	N/A	N/A	200
BH00-025	#25	4.80	3/16"	8.00	0.31"	2.40	34.80	7.2	104.40	110	4.33	N/A	N/A	200
BH00-026	#26	6.40	0.25"	13.00	0.52"	2.70	39.15	8.1	117.45	150	5.91	N/A	N/A	100
BH00-035	#35	7.90	0.31"	14.70	0.57"	1.40	20.30	4.2	60.90	200	7.87	N/A	N/A	100
BH00-036	#36	9.50	0.37"	14.70	0.43"	2.70	39.15	8.1	117.45	280	11.02	N/A	N/A	100
BH00-070	#70	7.90	0.31"	18.90	0.57"	1.40	20.30	4.2	60.90	200	7.87	N/A	N/A	100
BH00-073	#73	7.90	0.31"	16.10	0.57"	1.40	20.30	4.2	60.90	200	7.87	N/A	N/A	100
BH00-082	#82	12.70	0.50"	19.30	0.75"	2.70	39.15	8.1	117.45	200	7.87	N/A	N/A	100
BH00-087	#87	12.70	0.50"	25.30	1.00"	2.40	34.80	7.2	104.40	200	7.87	N/A	N/A	100
BH00-088	#88	12.70	0.50"	22.20	1.00"	1.40	20.30	4.2	60.90	200	7.87	N/A	N/A	100
BH00-088	#89	15.90	0.62"	22.20	0.87"	1.40	20.30	4.2	60.90	200	7.87	N/A	N/A	100
BH00-091	#91	19.05	0.75	32.60	1.25"	2.40	34.80	7.2	104.40	350	13.78	N/A	N/A	100

Product application:

Widely used in chemical materials treatment, food and beverage, medical research, water treatment projects, pharmaceutical,

laboratory, printing, biological technology, semiconductor, Life sciences (tissue and cell culture, fermentation), etc.

also used for human injection and serum delivery. The hose does not contain adjacent benzene two formate plasticizer and

the transmission fluid will not penetrate.

Product description:

-used in liquid and semi fluid food of medicine and cosmetic products, bio engineering.

-Standard length is 20 meters per roll, and we can also to produce the specified size and length according to customer requirements.Our hose products has passed the certification of the United States FDA grade and Class VI USP and German BFR.

Product characteristics:

Material:Sanitary grade platinum silicone materials.

Surface: high accuracy on the surface,tasteless, colorless and Non hemolytic

-odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully meet the requirements of food FDA and biological medical grade VI USP.

-the outer layer of these hoses is the transparent platinum vulcanization silicone.

Quality certification:

-pass the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.

-pass the German BFR parts XV standard certification and LFBG certification.

-in accordance with the EU directive 2008/95/ECC limitation usage of certain hazardous substances (RoHS) recognition.

-in accordance with ISO10993, NSF51 and European Pharmacopoeia 3.1.9 requirements.
