東莞市格雷特硅膠制品有限公司

化工類高壓軟橡膠管FD31

Chemical high pressure rubber hose FD31

應用：廣泛地配套在醫藥、化妝品、食品及精細化工等行業中固定或移動的設備上?？膳盼呷芏鹊母g性化學品。

優點：FEP & PTFE內管可以輸送幾乎所有的腐蝕性化學物質，使用壽命很長。

清潔及消毒：內壁光滑，無粘性，低滲透性，不易滋生細菌；可以用蒸汽、洗潔劑、溶劑等進行消毒。

潔凈性：通過FDA認證，符合或超過3A標準的要求。

兼容性：不會污染或影響任何介質的味道，顏色或氣味。

柔韌性：彎曲半徑很好，并且不會產生例如金屬軟管的“金屬疲勞”現象。

耐用性：可在惡劣環境中使用。即使在熱循環中也不會受

老化或脆化。

技術參數：

內管：食品級耐化學腐蝕的FEP材質，光滑（也可提供PTFE材

質的黑色導靜電內膠）

增強層：高強度合成線繩，內置螺旋鋼絲加強

外管：耐老化耐腐蝕EPDM合成橡膠，綠色，表面布紋

工作溫度：-40℃至+177℃

適用標準：FDA 21CFR 177.2600，3A

Product application:

widely used on the fixed or mobile devices of medicine indutry, cosmetics industry, food and fine chemical industry.

it can suck and delivery the high-density corrosive chemicals.

Advantages:

FEP & PTFE inner hose can transport almost all of the corrosive chemicals with long service life.

Cleaning and disinfection: the inner wall is smooth, no stickness,low permeability,not easy to breed bacteria.steaming, detergent and solvent can be used for cleaning.

Cleanness: Pass the FDA certification.Meet or exceed the requirements of 3A standards.

Compatibility: will not pollute or affect the taste, color or smell of any agent.

Flexibility: bending radius is very good,and so-called "metal fatigue" phenomenon like metal hose will not happen.

Durability: can be used in bad environments. Even in the extreme thermal cycle,it will not be Aged or embrittled.

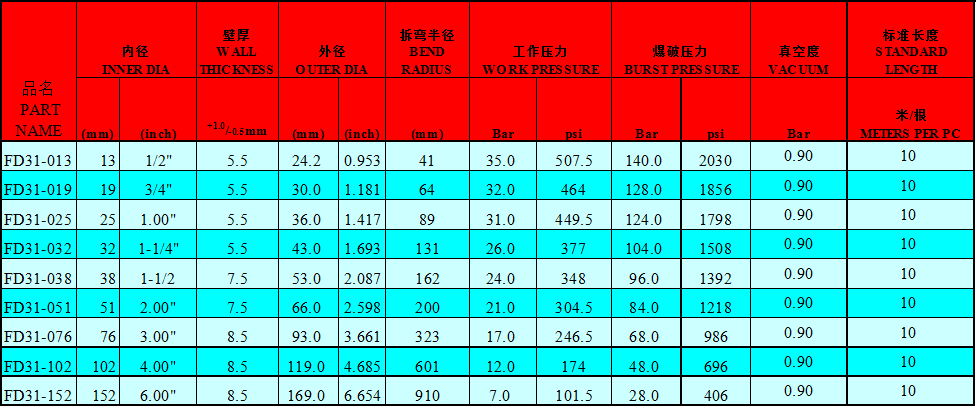

Technical parameter:

Inner tube: food grade chemical corrosion resistant FEP material,smooth (also can provide PTFE material Qualitative black conductive adhesive)

Reinforcement layer: high strength synthetic cord, the spiral steel wire reinforced inside.

Outer hose: aging resistant and corrosion resistant EPDM synthetic rubber, green,the texture surface.

Work temperature: -40 to +177degree Celsius.

Applicable standards and certification: 21CFR FDA 177.2600, 3A
