東莞市格雷特硅膠制品有限公司

內襯氟硅膠鋼絲軟管FS30

Tellon lined silicone wire hose  FS30

注：1.標準生產長度為6米（特殊可訂做10米），可以做切短。其它的內徑要求可以根據客戶的要求來訂制。

    2.在我們?cè)趨?shù)表中測試是依照常溫，標準大氣壓狀態。當壓力不變時，溫度每上升幅度100度，壓力會下降百分之15。

REMARKS:

    1, Standard length is 6 meters or especially 10 meters and we can customize the hose length according to customers' needs.

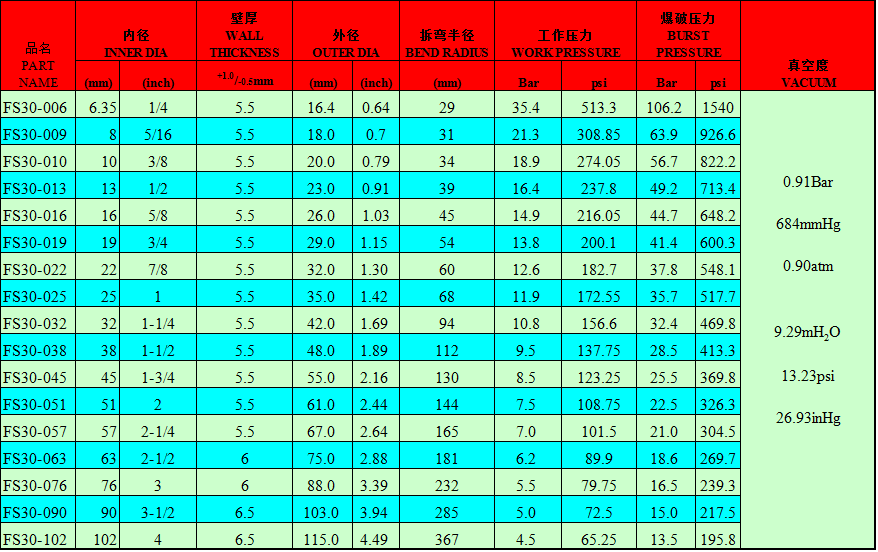

    2, The test in the parameter list is in accordance with the normal temperature and the standard atmospheric pressure state.

When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.

產品應用：

特別推薦用于具有耐油性能，符合食品級的要求，在化妝品類，食用油類，以及汽車類得到廣泛的應用。

具有不老化，有良好的耐腐性能，有良好的機械性能和物理性能?？估阅芎谩?

產品結構：

內層：內層為氟硅膠層（通常為乳白色或白色或黑色）

編織：四層層夾布網紋編織

鋼絲：采用單層304不銹鋼絲間距為5MM或不加鋼絲，

產品特性：

——工作溫度范圍‘-60oC / +180oC (-76oF / +356oF)在短時間內可達到  220oC (392oF)

——具有極好不老化，有良好的耐腐性能，有良好的機械性能和物理性能。抗拉性能好.

品質認證：

——硅膠軟管通過美國FDA 21 CFR 177.2600(食品和藥物管理局)食品級認證。

Product application:

Specially recommended for oil resistant properties, in compliance with the requirements of food grade.

Widely used in the industry of cosmetics, edible oil and automobiles with good aging resistance, good corrosion resistance,

good mechanical and physical properties and good tensile properties.

Product structure:

inner layer: fluorine rubber layer (usually milky white or white or black)

Weaving:4 layers of cloth woven mesh

Steel wire: single layer of 304 stainless steel wire, the spacing is 5mm or without wire added.

Product characteristics:

-The working temperature range: -60 to +180 degrees Celsius (or -76 to +356 degrees Fahrenheit) and it can reach 220 degrees Celsius (or 392 degree Fahrenheit) in a short period of time

-excellent aging resistance and corrosion resistance. Very good mechanical and phisical performance.Excellent tensile resistance.

Quality certification:

-silicone hose passes the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.
